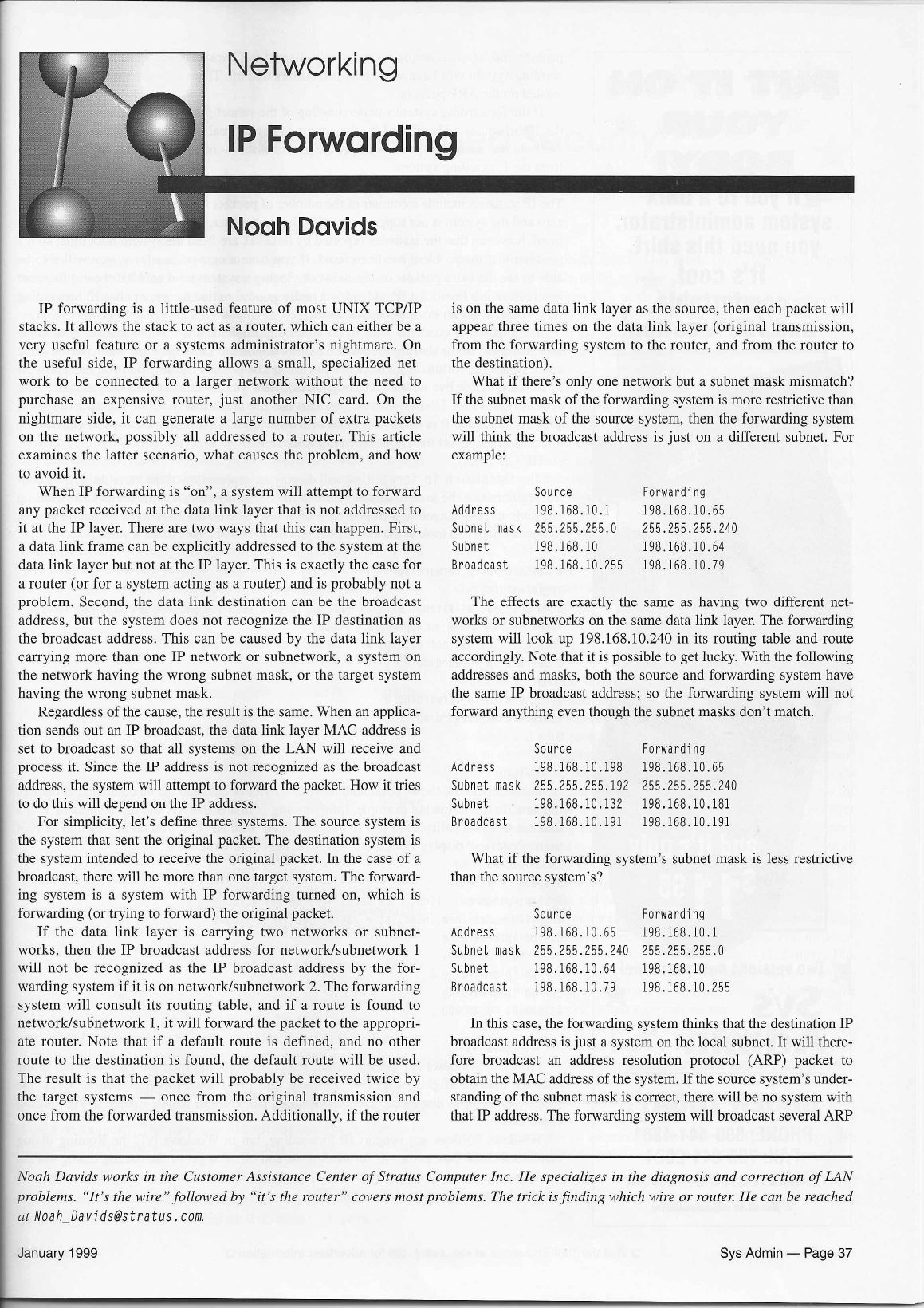

Note that the second example on the first page, two different addresses and subnets having the same broadcast address, is totally bogus. I apologize for the mistake. The following example is correct.
source | forwarding | ||
address | 198.168.10.178 | 198.168.10.138 | |
subnet mask | 255.255.255.240 | 255.255.255.192 | |
subnet | 198.168.10.176 | 198.168.10.128 | |
address | 198.168.10.191 | 198.168.10.191 |
